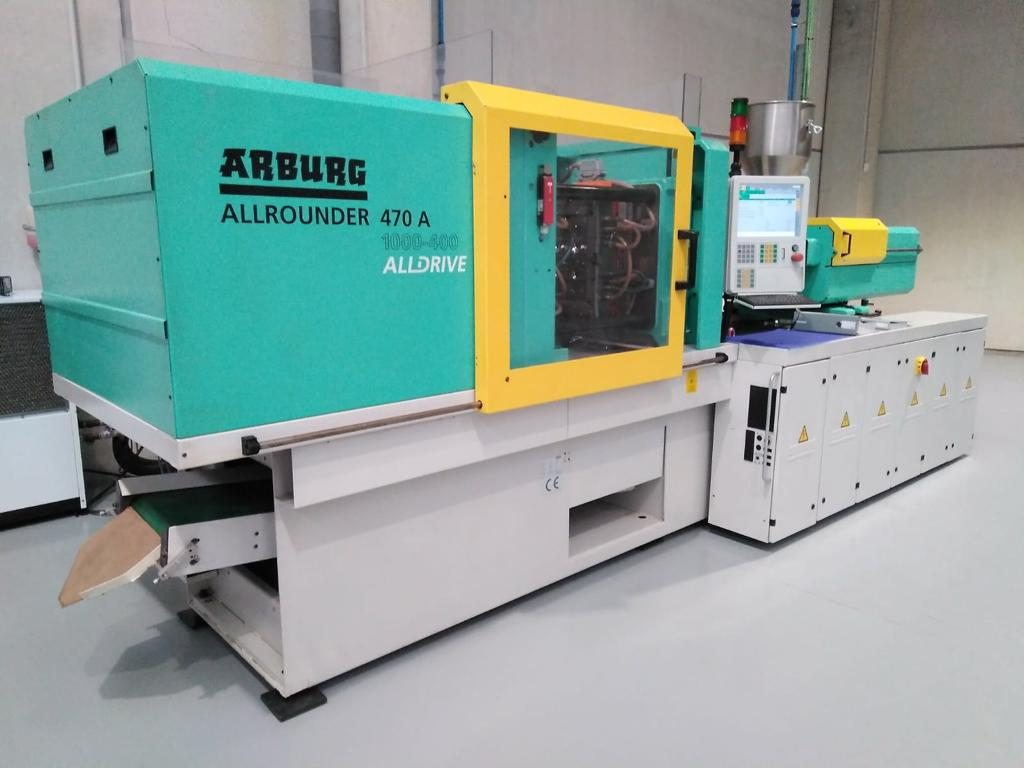

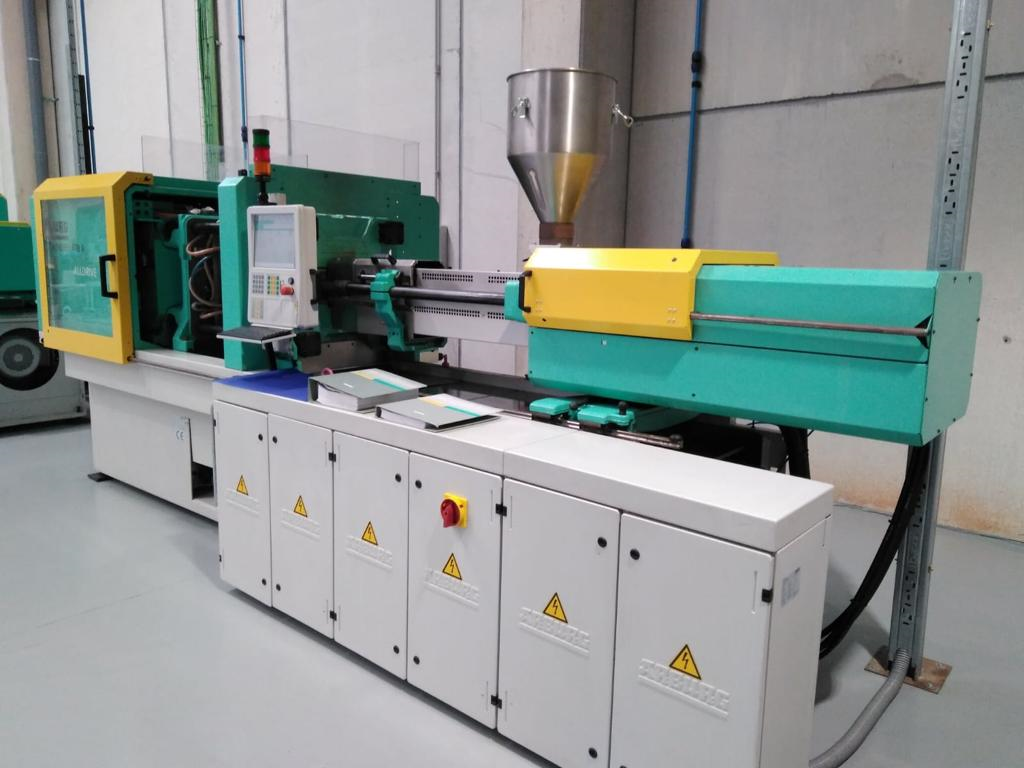

Arburg Inyección Moulding Machine. 100 tons of clamping force. Year 2008. 19.300 working hours. Screw diameter 40mm.
Technical details | |
---|---|
WORKING HOURS | 19.300 |
CLAMPING FORCE | 1000 kN |
PLATEN SIZE | 637x637 |
DISTANCE BETWEEN TIE BARS (h x v) | 470x470 |
TRAVEL OPENING | 350 |
MIN. MOULD HIGHT | 250/500 |
DAYLIGHT MAX | 600/850 |
SCREW DIAMETER | 40 |
INJECTION PRESSURE | 2.000 Bar |
INJECTION VOLUMEN | 201 Cm3 |
SHOTWEIGHT | 184 gr |
If you want to sell a machine you can contact us without any commitment.
The sequence of our work when reconditioning a machine consists of the following points.
View InformationGeneral cleaning of the whole Injector and replacement of broken parts.
Checking, repairing and adjusting the electrical system.
Hydraulic system check.
Mechanical functional check.
Safe Shipment.
